Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple physical phenomena such as voltage, current, temperature, vibration, acceleration and rotation due to complete isolation between channels and from each channel to the ground.

Key Features

• Supports a wide variety of measurements with a total of 13 plug-in modules (5 new modules added) • Generate and record with a single unit

• Direct 1000 V high voltage input testing

• High-speed sampling up to 20MS/s with fully isolated inputs

• 16 analog + 16 logic channels to 64 logic + 10 analog channels

• High-speed sampling with waveform judgement function

• Soil-resistant construction strong against adverse working environments

• Big buttons coated to withstand industrial oil and residue

• Drop-in paper loading and one-touch setup, along with high-speed 50mm/s printing

High-speed 20MS/s, 16-channel, Fully Isolated Memory Recorder

The MR8847A performs multichannel measurement with simultaneous, high-speed sampling of all channels at 20 MS/s.（resolution: 50 nsec） High-speed sampling allows you to measure the rising edge of pulses and detect anomaly operations and instantaneous waveforms that occur suddenly with high precision. Connections between analog input channels, and between the input channel and the main unit, are isolated by isolation elements. So potential differences can be measured without any concerns, just like with an oscilloscope.

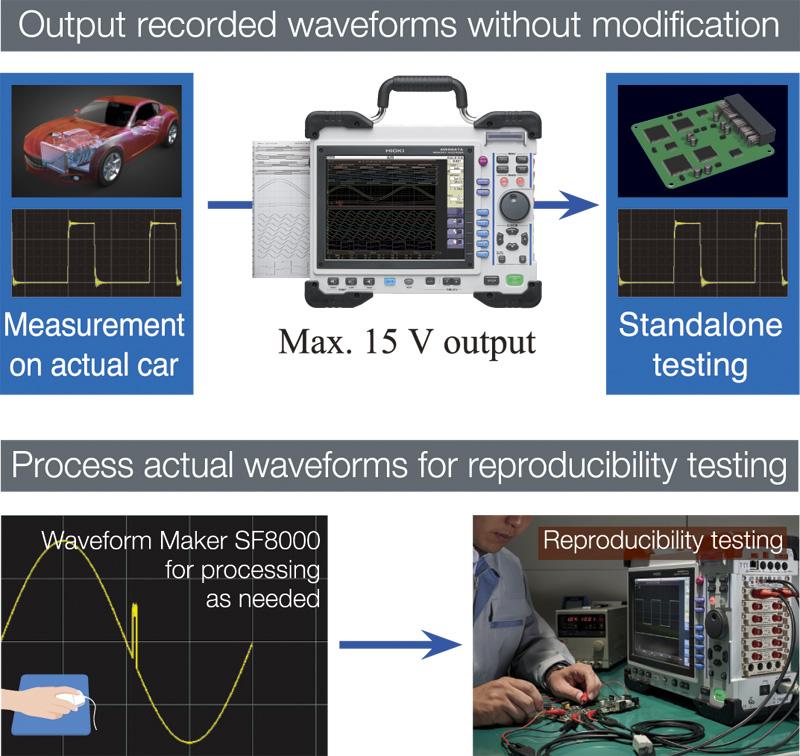

Generate and record in a single unit / ARBITRARY WAVEFORM GENERATOR UNIT U8793

Just one Memory HiCorder gives you a function generator mode, arbitrary waveform generator mode, and waveform measurement mode. This makes it easy to observe waveforms while varying test conditions, such as changing the signal's amplitude and frequency and programming various waveforms to output in order. The included Waveform Creation Software SF8000 can be used not only to create waveforms, but also to perform calculations such as adding noise and multiplying waveforms quickly and easily.
